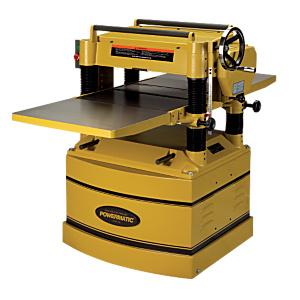

20" Planer, 5HP 3PH 230/460V
209
Powermatic
This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
(click image to enlarge)
Quick Overview
Part Number: 1791297
Maximum Planing: 20 "
Maximum Planing Thickness: 8 "
Maximum Depth of Cut: 3/32 "
Minimum Planing Length: 6¾ "
Cutterhead Diameter: 3 3/16 "
Cutterhead Speed: 5000 RPM
Cuts Per Minute: 20000
Feed Rate: 24 and 31 FPM (16 and 20 FPM with gear change)
Number of Knives: 4
Dust Port Diameter: 5 "
Dust Collection Minimum CFM Required: 900 cu.ft/min
Blade Size: 20" x 1" x 1/8"
Bed Rollers Adjustable from Front: n.a.
Readout Scale: inch/ metric
Table Height Adjust Manual: n.a.
Table Support: 4 column
Number of Speeds: 4
Amps: 14 A
Motor Power: 5 HP
Motor Phase: 3 Ph
Motor Voltage: 230 V
Prewired: 230 V
Model Number: 209
Brand: Powermatic
Overall Dimensions: 26 x 36-5/8 x 41-3/8
Height: 41.375 inch
Width: 36.625 inch
Length: 26 inch
Net Weight: 770 pound
Interested in this item or want more information?
8:00 & 5:00 PST
Phone: 657-777-3411
Email:
sales@48ws.com
Can't find what you want? Give us a call and we can help you find it.
Details
Knife setting gauge
5HP motor and 20" planing capacity for heavy duty work
Fully enclosed base cabinet with integrated casters for shop mobility
Cast iron table with extensions creates a big 55-1/2" x 20" working area
Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
Standard Equipment:
Single-sided knives
5" diameter dust port
Cast iron extension tables
Additional Information
Manufacturer: Powermatic
For More Information on the 20" Planer, 5HP 3PH 230/460V,
[Click Here]
to Link to Manufacturer Web Site
