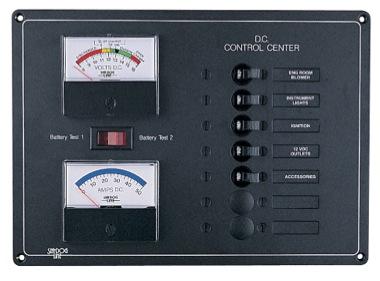

This basic control panel is suitable for most applications for DC use. Designed with a total circuit availability, it also allows the ability to monitor 2 batteries, as well as additional information. All Sea-Dog Electrical Panels feature: marine grade materials and finishes, matching appearance and graphics and have size and shape compatibility allowing system expansion. Part number 423412 comes completely wired and designed for 12 volt DC electrical systems. Gauges consist of one 8 - 16 volt DC expanded scale, high accuracy voltmeter and one 0 - 50 amp DC amp meter. Included with each panel are 2 each 5 amp, 1 each 10 amp, 1 each 15 amp and 1 each 20 amp single pole breakers. In addition, panel is designed to allow 2 additional circuit breakers to be installed for a total of 7 protected circuits. Circuit decals shown are from label sheet which is included with panel and LED lights are now included.

Technical Info :
