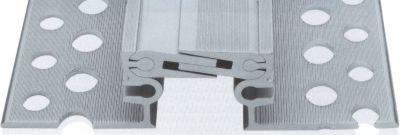

Interior Floor Expansion Joint - FS 50

FS-50

EMSEAL Joint Systems, Ltd.

For use with light duty utility carts, luggage carts, gurneys,vendor carts and any other medium point load traffic.
(click image to enlarge)
Quick Overview
  • Composition : Solid Aluminum
  • Movement Capability : 3/8" (+ 3/16", - 3/16")
  • Load Rating : Medium
  • Joint Size Up To : 1 ¼"
Interested in this item or want more information?
8:00 & 5:00 PST
Phone: 657-777-3411
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details



For use with light duty utility carts, luggage carts, gurneys,
vendor carts and any other medium point load traffic.

For max. mean joint sizes up to 30 mm (1 1/4-inches)
at mid-point of expected service temperature range



Deck-to-Wall Version (E-4)



    • For max. mean-temperature joint widths up to 30 mm (1 1/4-inches)
    • All-metal profile (aluminum)
    • Installation Leg Height choices: 20mm (3/4"), 35mm (1 3/8"), 50mm (2")
    • Blockout depth = Leg Height + 6mm (1/4 inch)
    • Blockout width will vary depending on joint-gap size--Consult EMSEAL
    • Total movement capability: 10mm = +5mm and -5mm (3/8-inches: +3/16" and -3/16")
    • Load capacity: Carts and other small-wheel high point-load traffic such as gurneys, luggage carts, etc.
    • Fabrication length = 4 meters (13.12 LF)

    Special properties
    • ADA compliant
    • Fire-rating available through addition of EMSHIELD DFR2.
    • Good skid resistance given by striated surface
    • Virtually smooth and impact-free traffic surface use at any opening state of the joint
    • Extreme durability
    • No dirt accumulation possible in the movement geometry


    • For assistance in calculating wheel loads of expected fork lifts or other vehicles--Consult EMSEAL
Additional Information
Manufacturer: EMSEAL Joint Systems, Ltd.
For More Information on the Interior Floor Expansion Joint - FS 50, [Click Here] to Link to Manufacturer Web Site
