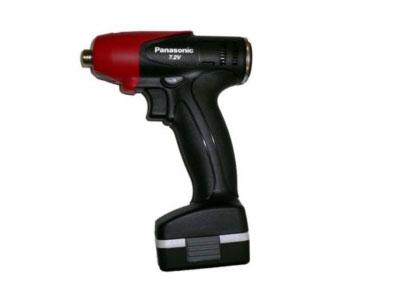

7.2V LI-ION AUTO SHUT-OFF PISTOL CLUTCH SCREWDRIVER

EYFEA1N2S

Panasonic Corporation

(click image to enlarge)
Quick Overview
  • ¼” Quick Change Collet
  • +/-5% Torque Accuracy
  • Auto Shut-Off Clutch
  • 53 in. lbs. Maximum Torque
Interested in this item or want more information?
8:00 & 5:00 PST
Phone: 657-777-3411
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Tech. Specifications :

Chuck Size : 1/4" Hex Quick Change
Max.Torque : High:2.0N·m 17.7 in. lbs. Low:6.0N·m 53.1 in. lbs.
Speed at No Load : High:0~900rpm Low:0˜300rpm
Clutch Torque (Approx.) : 0.3~4.0N·m 2.65 in lbs. – 35.4(0.19N·m 1.68 in. lbs. per stage, total 21 stage)
Size(LxHxW) : 145mm x 198mm x 42mm
Weight : 630g (1.38 lbs.)
Battery Capacity : Li-Ion 1.5Ah Rated (accord. To IEC)
Charging Time (with EY0L20 charger ) : Usable charge: approx 35 minutes Full charge: approx 60 minutes
Max. Screws Driving : High mode:M4 screw Low mode:M5 screw
Screws in Sheet Metal (M2.5 x 6mm) : High: Approx.1900pcs
Screws in Sheet Metal (M4x10mm) : High: Approx.1850pcs
Screws in Sheet Metal (M5x8mm) : Low: Approx.1450pcs
Function ·: Auto-Power Stop function (low battery shut-down) ·LED Light Clutch and H/L switch fixing cover Speed control brake
Dimensions (H x W x D) : 9.75'' x 13.5'' x 22.0''
Weight : 3.733 lbs
Additional Information
Manufacturer: Panasonic Corporation
For More Information on the 7.2V LI-ION AUTO SHUT-OFF PISTOL CLUTCH SCREWDRIVER, [Click Here] to Link to Manufacturer Web Site
