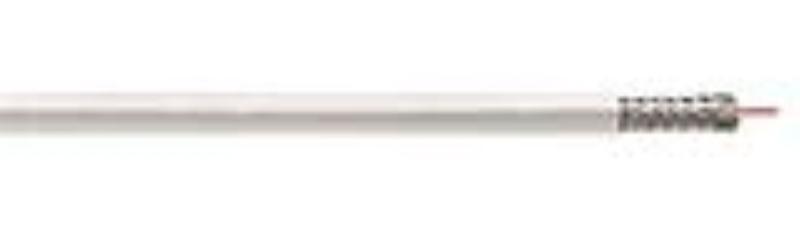

Coleman Cables Rg11 14Bc 65 Tc Plenum

99901

Coleman Cable - CCI

(click image to enlarge)
Quick Overview
    Features & Application:-
    • RG11 Type
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • CATV
Interested in this item or want more information?
8:00 & 5:00 PST
Phone: 657-777-3411
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 14 AWG (1/.064) Solid Bare Copper - 0.064
Dielectric Foam FEP color natural 0.108 0.280
Shielding Aluminum/Polyester/Aluminum Shield and 65% Tinned Copper Braid - 0.305
Jacket PVDF (KynarÒ) 0.0170 0.339
VALUE*
Conductor Resistance (ohms/kft) - 4.3
Impedance(ohms) - 50
Capacitance (pF/ft) - 27
Velocity of Propagation (%) - 80
Attenuation** (db/100 ft) 50 MHz 1.2
100 MHz 1.7
200 MHz 2.2
400 MHz 3.3
700 MHz 4.5
1000 MHz 5.5
2000 MHz 10.0
2200 MHz 10.4
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg11 14Bc 65 Tc Plenum, [Click Here] to Link to Manufacturer Web Site
