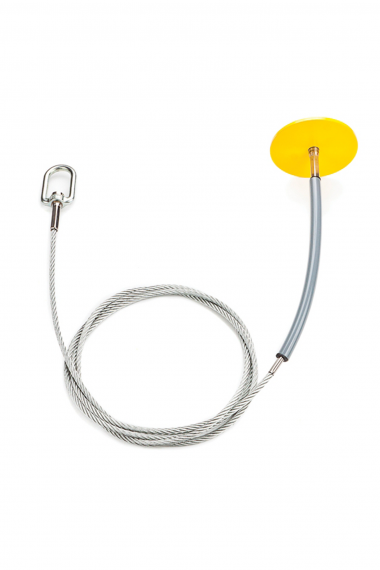

The Guardian Fall Protection Drop Through Anchor Kit is a 5,000 pound capacity overhead anchorage connector. It is designed to drop through an opening in any 1—3/4 inch by 2 inch substrate that is compliant with all applicable fall protection requirements. This anchorage connector features a 1/4 inch thick steel plate with an 8 ½' cable attached to a swivel D-ring, and can be attached to concrete floors, steel girders and grates, and more. It is compliant with all ANSI Z359.1-2007 regulations, and is available in custom lengths upon request.

(click image to enlarge)

Quick Overview

Easy to install
Lightweight and durable
Custom lengths available
http://bit.ly/1y9CdC9
http://bit.ly/1HJcUXr
http://bit.ly/1XZADel
OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.1-07, and ANSI A10.32-12
130-400 lbs.
Stainless steel
5,000 lbs.
http://bit.ly/1TQkQOt

Interested in this item or want more information?
8:00 & 5:00 PST
Phone: 657-777-3411
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Part #:

00516

Feature 1	Easy to install
Feature 2	Lightweight and durable
Feature 3	Custom lengths available
Instructions	http://bit.ly/1y9CdC9
Tech Sheet	http://bit.ly/1HJcUXr
Sell Sheet	http://bit.ly/1XZADel
Applicable Standards	OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.1-07, and ANSI A10.32-12
Worker Capacity Range	130-400 lbs.
Material	Stainless steel
Min. Breaking Strength	5,000 lbs.
C of C	http://bit.ly/1TQkQOt

Additional Information

Manufacturer: Laticrete

For More Information on the Drop Through Anchor, [Click Here] to Link to Manufacturer Web Site
