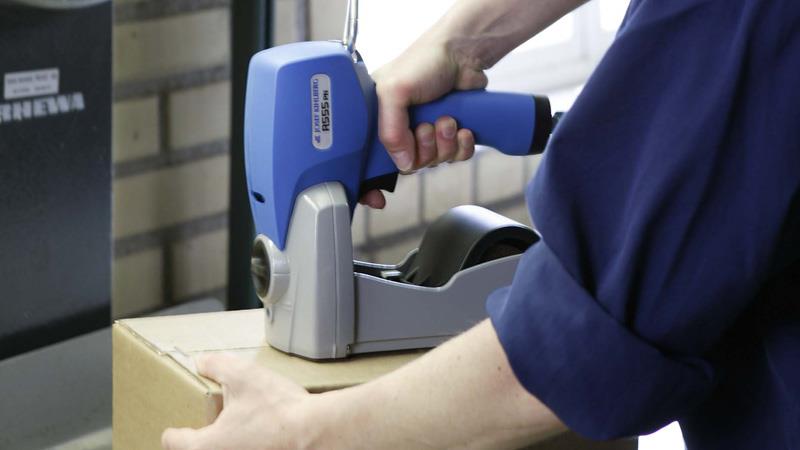

Top stapler R557PN is our Swedish-manufactured R557PN pneumatic roller stapler should be used if loading capacity is a crucial factor. The tool is quickly loaded and light with a roll consisting of 1,000 staples. The tool is equipped with cover caps of engineering plastic providing an extremely low weight; wear parts are made of metal. JK557 staples with leg lengths JK557-15 and 18 mm make tool adjustment easy. Top stapler R557PN is easy to adjust for different stapling depths and has precise (repeatable) stapling and a complete stapling cycle.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
8:00 & 5:00 PST
Phone: 657-777-3411
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Article No.: 033399 Length: 370 mm | 14.6 in Width: 68 mm | 2.7 in Height: 290 mm | 11.4 in Weight: 2,2 kg | 4.9 lbs Stapling gap: 22 mm | 0.9 in Throat depth: 140 mm | 5.5 in Magazine capacity: 168 Fasteners Max. pressure: 7,0 bar | 100 psi Staple leg length: 12 - 22 mm | 1/2 - 7/8 in Nose length: 14 mm | 0.6 in Recommended working pressure: 5,0 - 6,0 bar | 70 - 85 psi Air consumption per driving operation at 6 bar operating pressure: 0,4 litres Lubrication: Yes CE declared: Yes Noise characteristic levels according to: EN 12549 A-weighted single-event emission sound pressure level at work station: 89 dB A-weighted sound energy level: 96 dB Vibration level: Vibrationrate below the limit of declaration according to EN 792-13 measured according to ISO 8662-11.

Additional Information

Manufacturer: Josef Kihlberg AB
