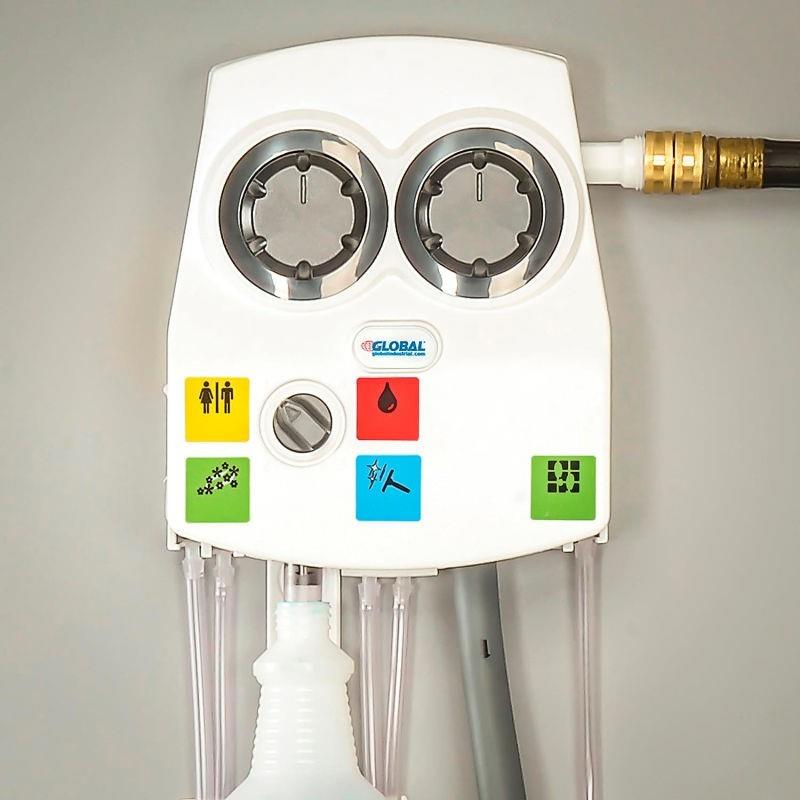

The Global Industrial™ Universal Cleaning Chemical Dilution Dispenser is a precision proportioner that connects to a water supply and dilutes up to 5 concentrated chemicals from any size container to a pre-determined ratio into a ready-to-use solution. The dispenser is compact in size and is ergonomically designed with a simple push button operation that can also be twist-locked for continuous filling. Each individual model includes a mounting template and built-in back plate level for effortless installation. A one gallon per minute plus four gallon per minute flow rate in the same unit, makes filling spray bottles, small containers, as well as mop buckets and floor machines quick and easy. Features:

User-friendly patented dilution dial to set desired chemical concentration from 2:1 – 230:1 for low flow application, or 6:1 - 570:1 for high flow application
Water and chemical inlets can be positioned on either side of the unit for flexibility
Unit is equipped with ASSE 1055 approved e-gap eductor backflow prevention.* Optional ASSE 1055 approved air gap backflow prevention assemblies available (Global Models #670323 - low flow & #670324 - high flow).
Key (included) locks unit cabinet to prevent tampering
Add additional units onto a single water connection with a joining piece (Model #670176)
Global Industrial Limited Two Year Warranty

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
8:00 & 5:00 PST
Phone: 657-777-3411
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

BRAND: Global Industrial
TYPE: 5-Chemical Dispenser
DESCRIPTION: Dual Flow Universal Cleaning Chemical Dilution Dispenser
DISPENSER WEIGHT: 3.5 lbs
FLOW RATE: 1-4 gal./min
DISPENSER DEPTH: 3-3/4"
DISPENSER HEIGHT: 14"
DISPENSER WIDTH: 6"
CHEMICAL INPUTS: 5
DILUTION RATIO RANGE: 2:1 - 570:1

Additional Information

Manufacturer: Global Equipment Company Inc.

For More Information on the Universal Cleaning Chemical Dilution Dispenser, Dual Flow, 5-Chemical, [Click Here] to Link to Manufacturer Web Site
